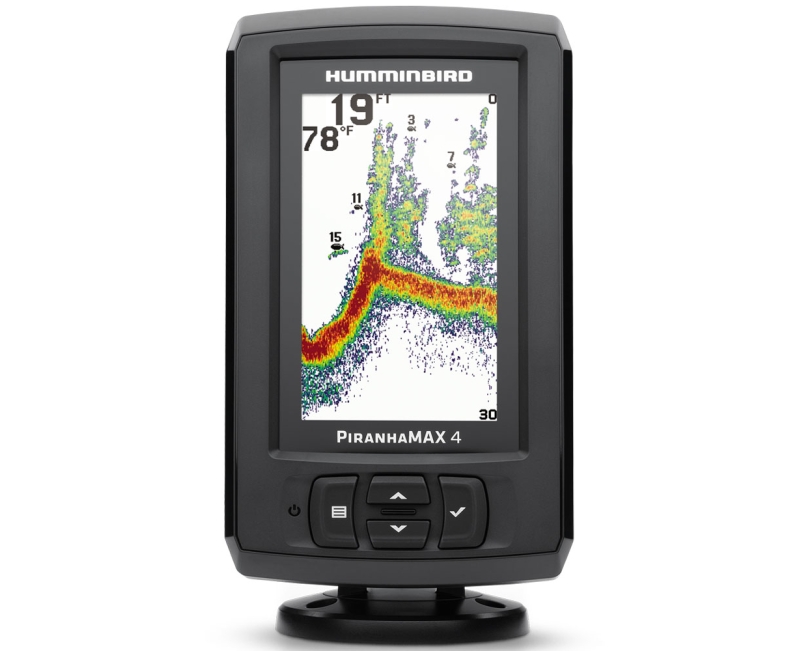

Humminbird PiranhaMAX 4 Fishfinder

The Humminbird PiranhaMAX 4 is a premium quality fishfinder with a 20% larger screen size compared to the 197 model and includes accurate, DualBeam frequency sonar technology for enhanced detailing and coverage.

The PiranhaMAX 4 features a bright, 256 colour display with a 4.3” screen size that makes it perfect for mounting easily to your boat. This model features a XNT 9 28 T transducer that allows you to mount the fishfinder inside the Hull or using a Transom. You can find fish and bottom structures up to an incredible 600 feet depth using this fishfinder.

The DualBeam frequency technology fitted to this model lets you adjust the angle of the sonar beam when searching areas. You can adjust the settings to a narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile and the wide beam setting is great when you want a larger search area.

The PiranhaMAX 4 is also fitted with a user-friendly interface, making it easy to use and operate. The backlit screen allows you to easily see the details on screen, no matter what angle the device faces or how bright it is outside.

The Humminbird PiranhaMAX 4 Fishfinder includes the PiranhaMAX 4 head unit, a Transnom mount Transducer, Tilt and swivel mount, Transnom Mount fittings, leads and an installation guide/manual.

4.3 inch, 256 colour display
DualBeam frequency sonar
Depth range of: 600ft
Separate, XNT 9 28 T transducer

Technical Details
Display Size - Diagonal: 4.3"
Display Pixel Matrix: 480H x 272V
Display Type: Colour TFT
Display Colours Grayscale: 256 Colours
Sonar Standard: DualBeam
Standard Sonar Coverage: 28° & 16° @ -10db
Standard Sonar Frequency: 200/455 kHz
Target Separation: 2.5"
Power Output RMS: 300 Watts
Power Output Peak to Peak: 2400 Watts
Depth Capability: 600 ft 200 kHz, 320 ft 455 kHz

Temperature: Built-In Transducer
Speed: Not Supported
Backlight: Yes
Unit Size - Gimbal Mount: 3.914"W x 7.335"H x 3.621"D
Mount A Type: Gimbal Mount
Unit Size - Indash Mount:In Dash
Mount B Unit Size2: 3.914"W x 6.770"H x 2.600"D
Mounting Options: Gimbal or Optional In-Dash
Transducer Standard: XNT 9 28 T
Transducer Mounting: Inside Hull or Transom
Power Input: 10.8-20 VDC
Power Draw: 180mA
